Piano Hinges / Continuous Hinges / Furniture  & Door Hinges

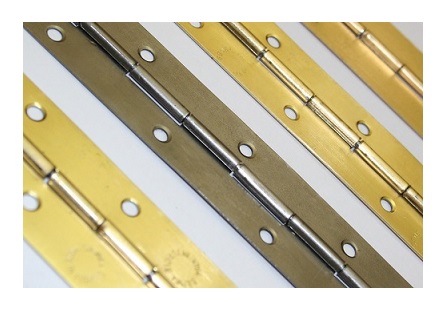

Our currently ongoing production of ŞENEL brand piano hinge, Turkey's largest integrated plant with an annual capacity of 6,000,000 meters. Our products are well-known in domestic and especially in foreign markets.



- Slitted Steel coils, main raw material of the hinge, are applied brass plating process in our 80 meters long pools with a special receipt.

- Thanks to this plating, the rust life of our hinges is extended.

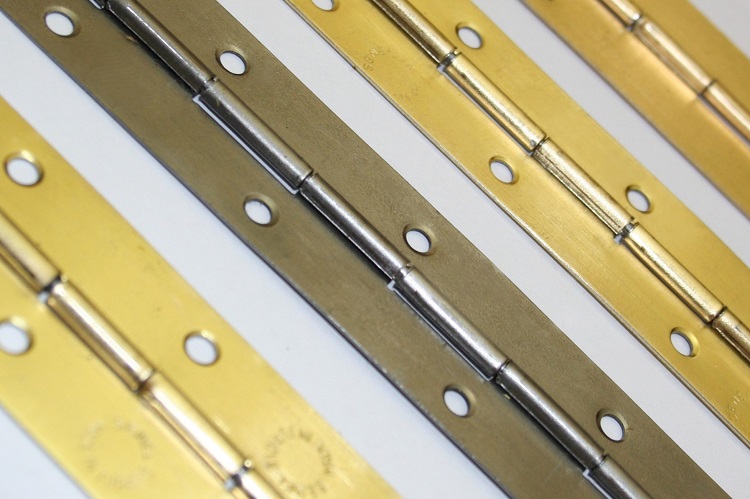

- Our hinges are available with cross punctured holes, opposing punctured holes and without holes options.

- Uncoated, stainless and RAL series painted hinges are also manufactured according to customer demand.

- Requested special size orders are also evaluated.





Production Flow

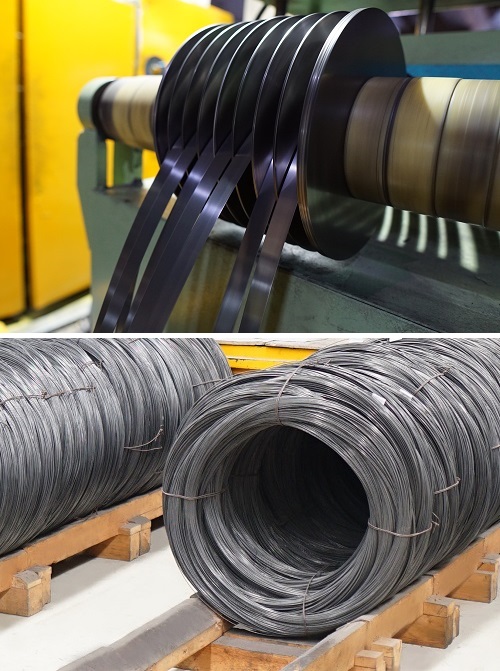

Raw Material: Slitted Coils + Drawn Wire
Raw Material: Slitted Coils + Drawn Wire

Slitted sheet metal and drawn wire are used in the production of piano hinges.

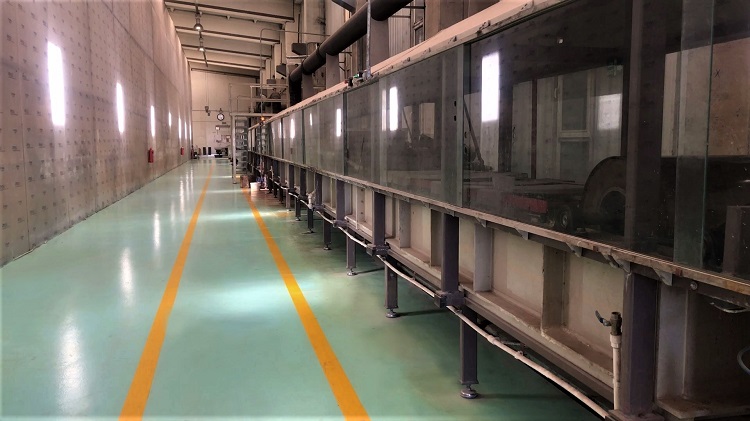

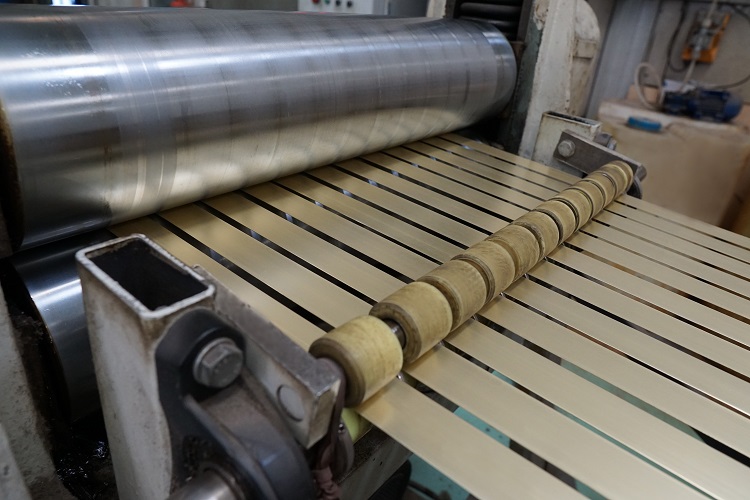

Brass Plating
Brass Plating

With our 80 meter long special brass plating facility, rust-resistant and yellow colored steels are obtained.

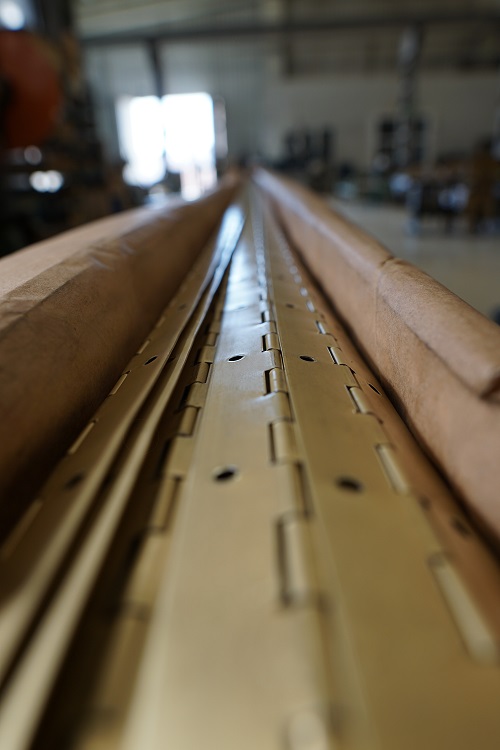

Mass Production
Mass Production

With our automation production, 6,000,000 meters of hinges can be produced annually.

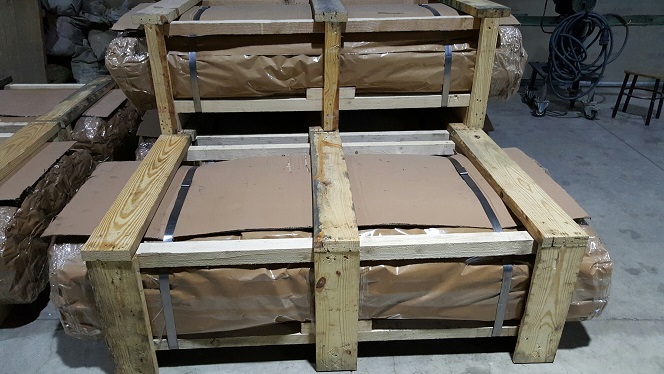

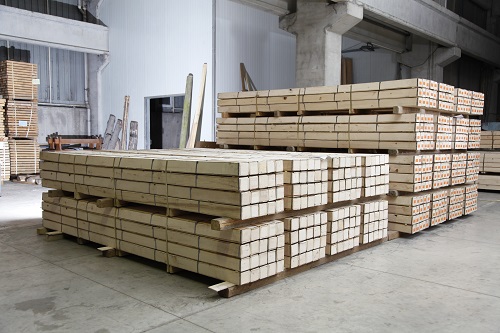

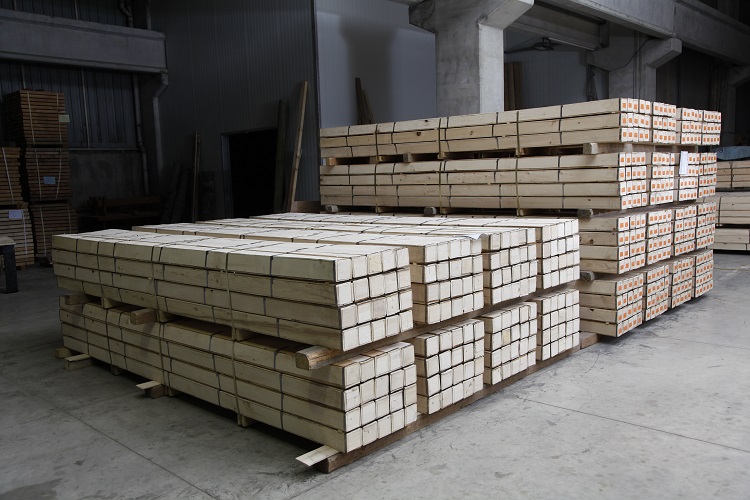

Wooden Case Packaging
Wooden Case Packaging

Piano hinges placed in wooden cases wrapped in oiled craft paper to protect them from water and moisture.

- Used in hinges length of 3500mm.

1 case contains 100 hinges.

1 palette contains 20 cases.

300 cases can be loaded in a 20' container

This packaging is made especially in overseas shipments.

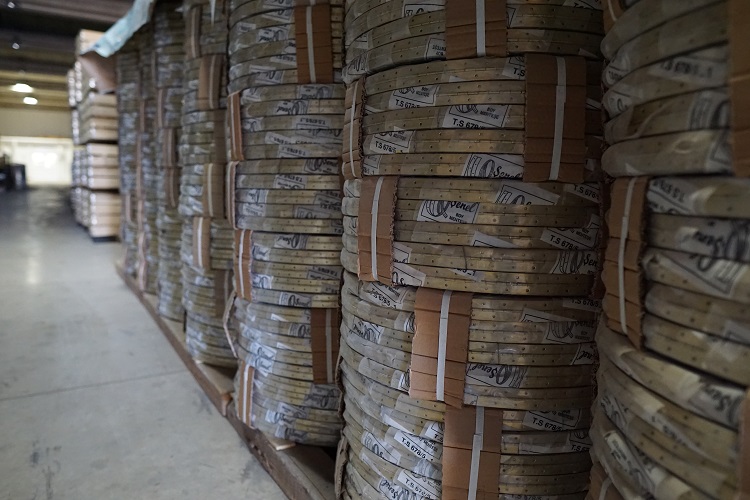

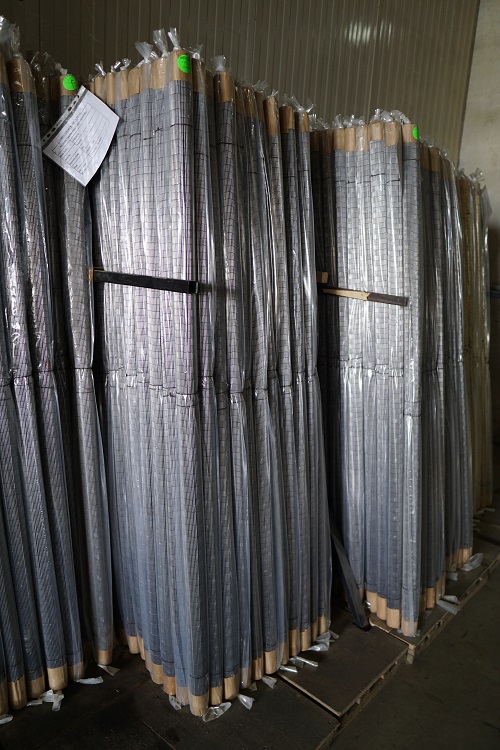

Roll Packaging
Roll Packaging

- Used in hinges length of 3500mm.

1 roll contains 10 hinges.

1 bundle (of rolls) contains 5 rolls.

- Every bundle taped/strapped from 4 different places.

This packaging is used both local and oversea shipments.

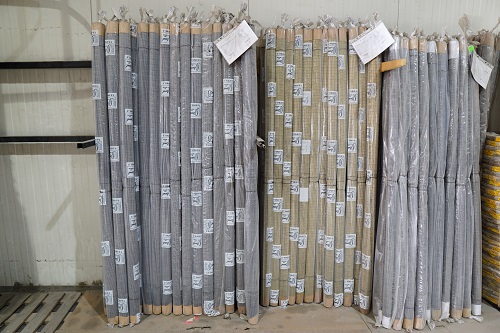

Bundle Packaging
Bundle Packaging

- Used in hinges length of 1750mm.

1 bundle contains 50 hinges.

This packaging is used both local and oversea shipments.





Production Dimensions





Piano Hinge Dimensions

Thickness
0,50mm - 0,60mm - 0,70mm - 0,80mm
Width
28mm - 30mm - 32mm
Lenght
1750mm - 3500mm

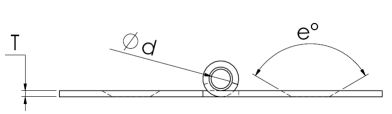

Dimension Drawings

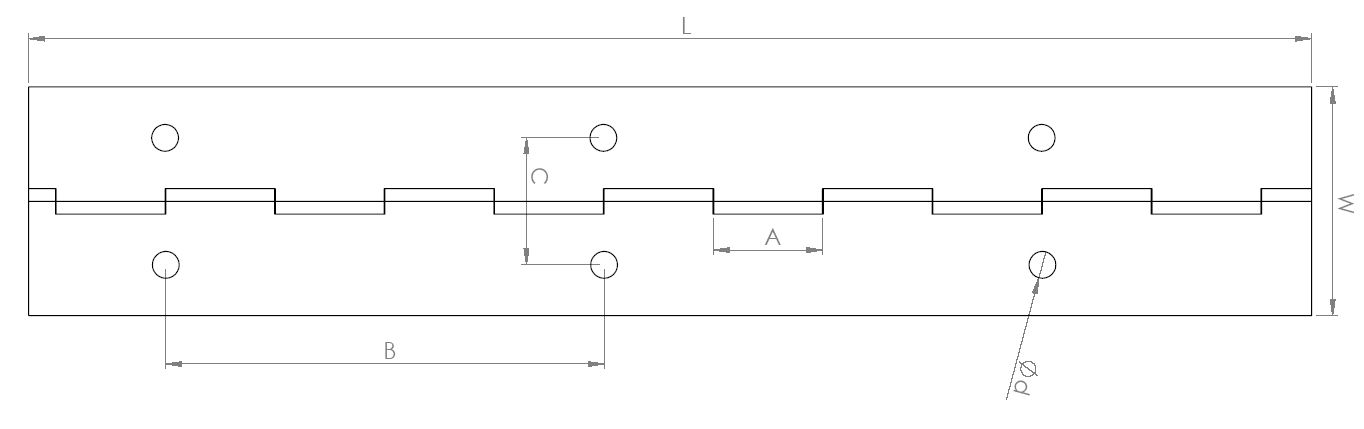

Opposing Punctured Piano Hinge

W (mm) (mm) L (mm) A (mm) B (mm) C (mm) h (mm) d (mm) e (mm)
28 0,50-0,60-0,70 1750-3500 15 60 18 3,70 1,80-2,05 130º
30 0,50-0,60-0,70 1750-3500 15 60 18 3,70 1,80-2,05 130º
32 0,50-0,60-0,70, 080 1750-3500 15 60 18 3,70 1,80-2,05 130º

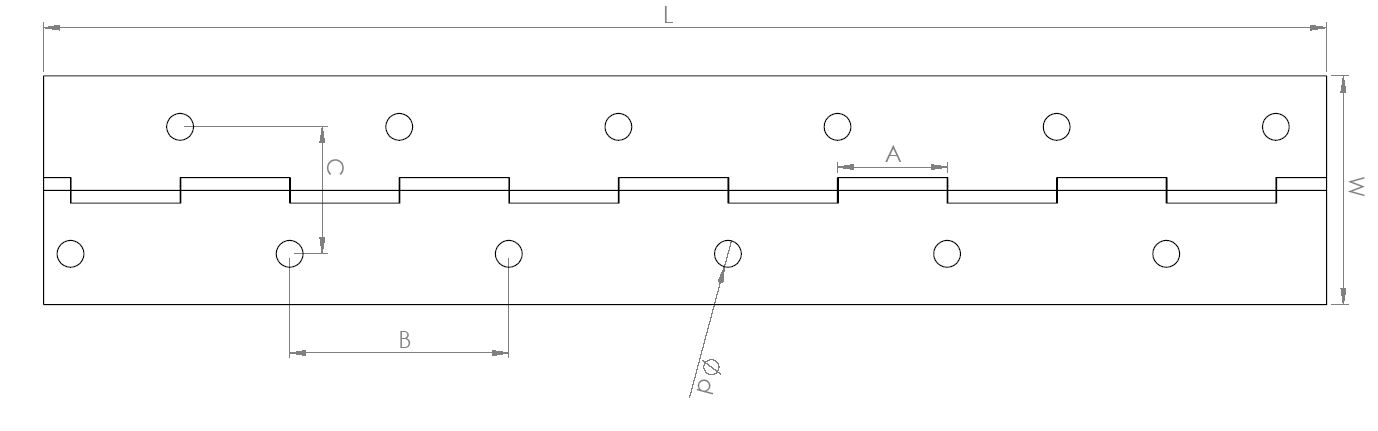

Cross Punctured Piano Hinge

W (mm) (mm) L (mm) A (mm) B (mm) C (mm) h (mm) d (mm) e (mm)
28 0,50-0,60-0,70 1750-3500 15 30 18 3,70 1,80-2,05 130º
30 0,50-0,60-0,70 1750-3500 15 30 18 3,70 1,80-2,05 130º
32 0,50-0,60-0,70, 080 1750-3500 15 30 18 3,70 1,80-2,05 130º

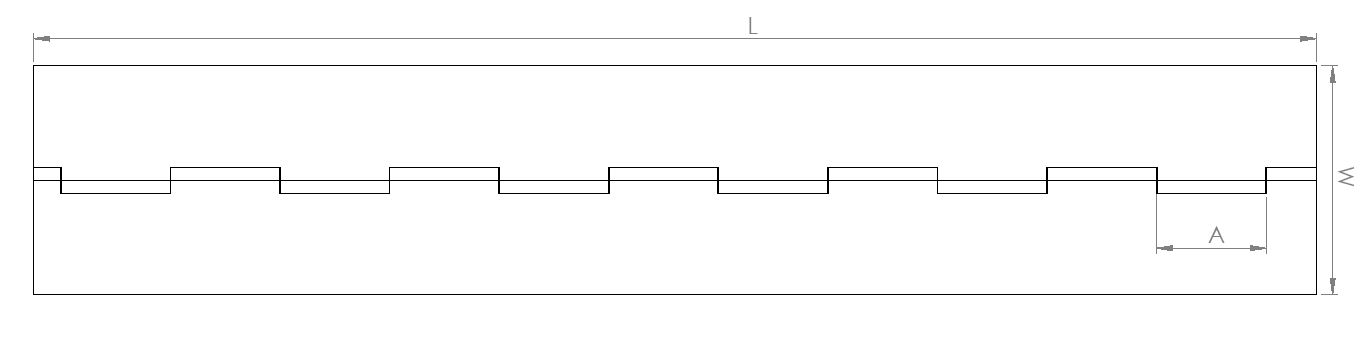

Piano Hinge with No holes

W (mm) (mm) L (mm) A (mm) d (mm)
28 0,50-0,60-0,70 1750-3500 15 1,80-2,05
30 0,50-0,60 1750-3500 15 1,80-2,05
32 0,50-0,60-0,70-0,80 1750-3500 15 1,80-2,05
